HMD920 Hougen 3" Depth / 3 Speed Mag Drill - 115V

Regular price $2,699.00 CAD
Sale price $2,699.00 CAD Regular price $3,015.00
Save $316.00
SKU: 0920102
Shipping calculated at checkout.

Our most powerful three-speed mag drill for heavy-duty fabrication.

Tackle the toughest holemaking challenges in the roughest conditions, with the NEW HMD920 portable magnetic drill. Powerful industrial strength motor for all day every day drilling, plus a three-speed gear box to maximize torque, tool life, and productivity.

  • Max Depth: 3" (76mm)
  • Max Diameter: 7/16" - 2-3/8" (12mm - 60mm)

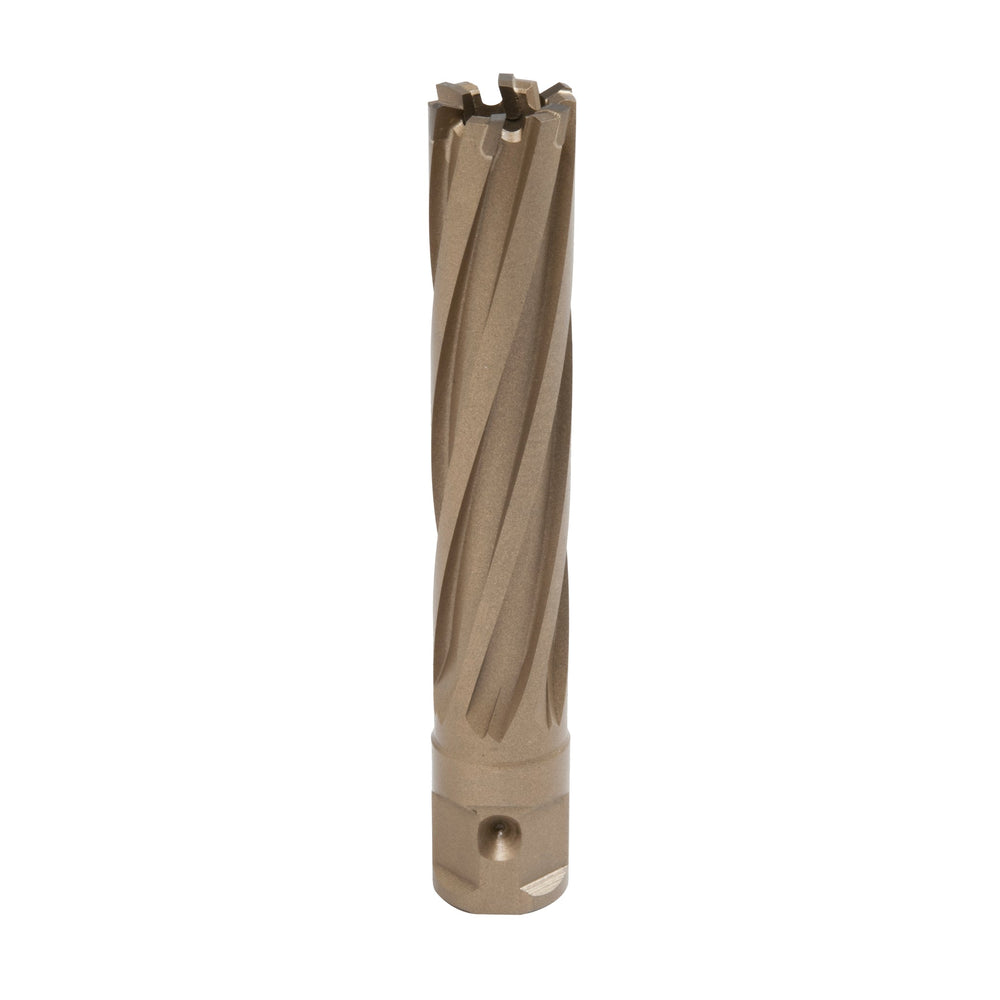

Three speeds allows for the use of both HSS "12,000-Series" and Carbide Tip Copperhead™ cutters.

PLEASE SELECT YOUR MODEL FROM THE DROP-DOWN MENU BELOW:

All models

  • 3" Depth of Cut
  • 7/16" - 2-3/8" (12mm - 60mm) Diameter Capacity
  • Powerful high torque Hougen motor and gears
  • Three spead gear box - 250 / 450 / 700 RPM
  • Pilot light for low light conditions and greater hole accuracy
  • Hidden motor cord
  • Two stage magnet. Engages full power only when motor is turned on, increasing magnet life.
  • Positive slug ejection.
  • Many accessories are available to turn your drill into a portable machine shop including: drill chucks, tapping, #2 Morse Taper Adapter, and more
  • Feed handles quickly change from side to side
  • Lift detector safety system
  • Gravity fed coolant bottle
  • Carrying case included (09495)
  • Two year warranty

Swivel Base adds even greater versatility (HMD920S & HMD920SFAB):

  • Precisely line up your pilot with the hole's center location
  • One stroke lock and unlock handle
  • Great for horizontal, overhead, tight areas, and getting out over another piece of steel
  • Diameter Range: 7/16" - 2-3/8" (12mm - 60mm)
  • Depth: 2" (76mm)
  • Cutter/Mount: "12,000-Series" & Copperhead cutters, 3/4" (19mm) shank
  • Twist Drill Capacity: 3/4" w/ drill chuck
  • Tapping Capacity: 3/4"-16 UNF w/ tapping unit

Drill More Holes

Optimize your fab shop with accessories for enhanced drilling performance:
